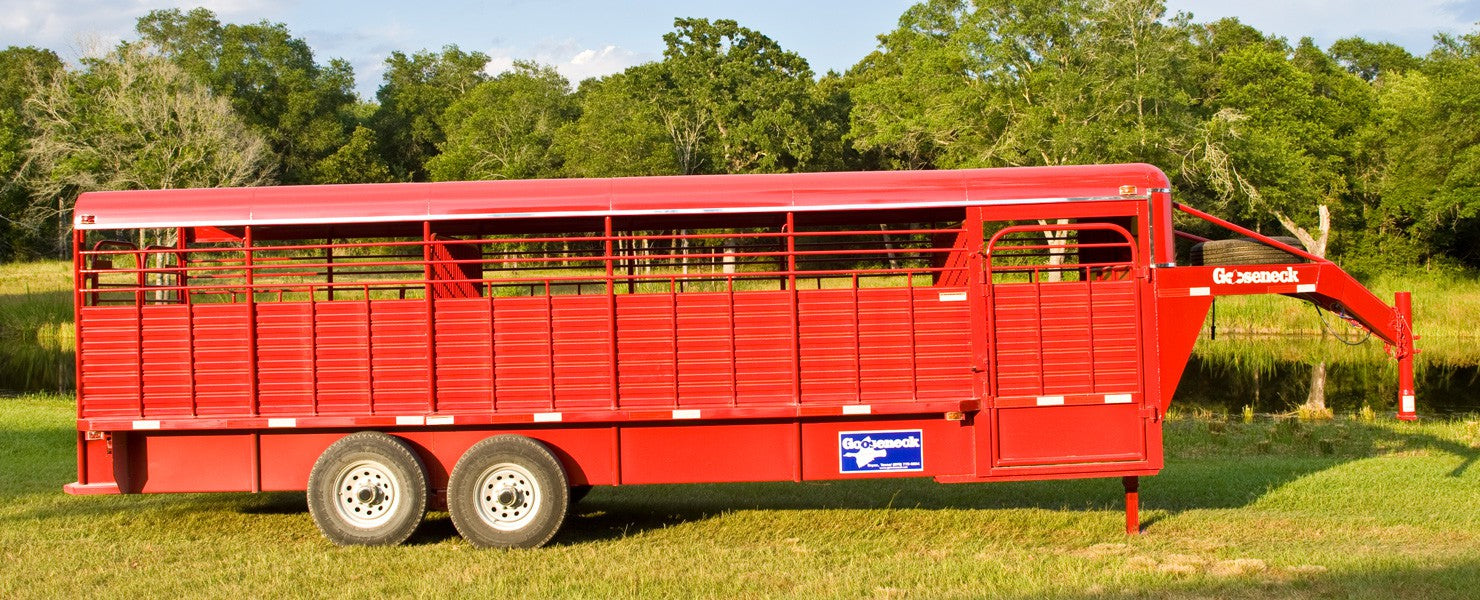

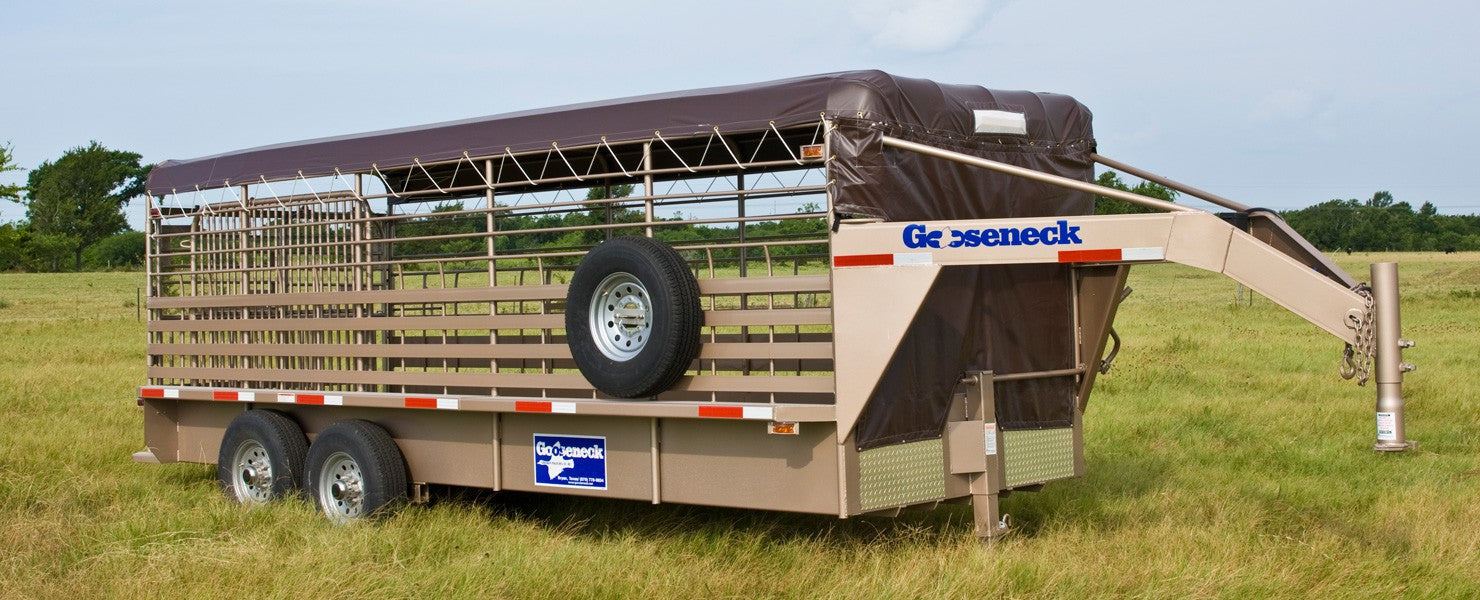

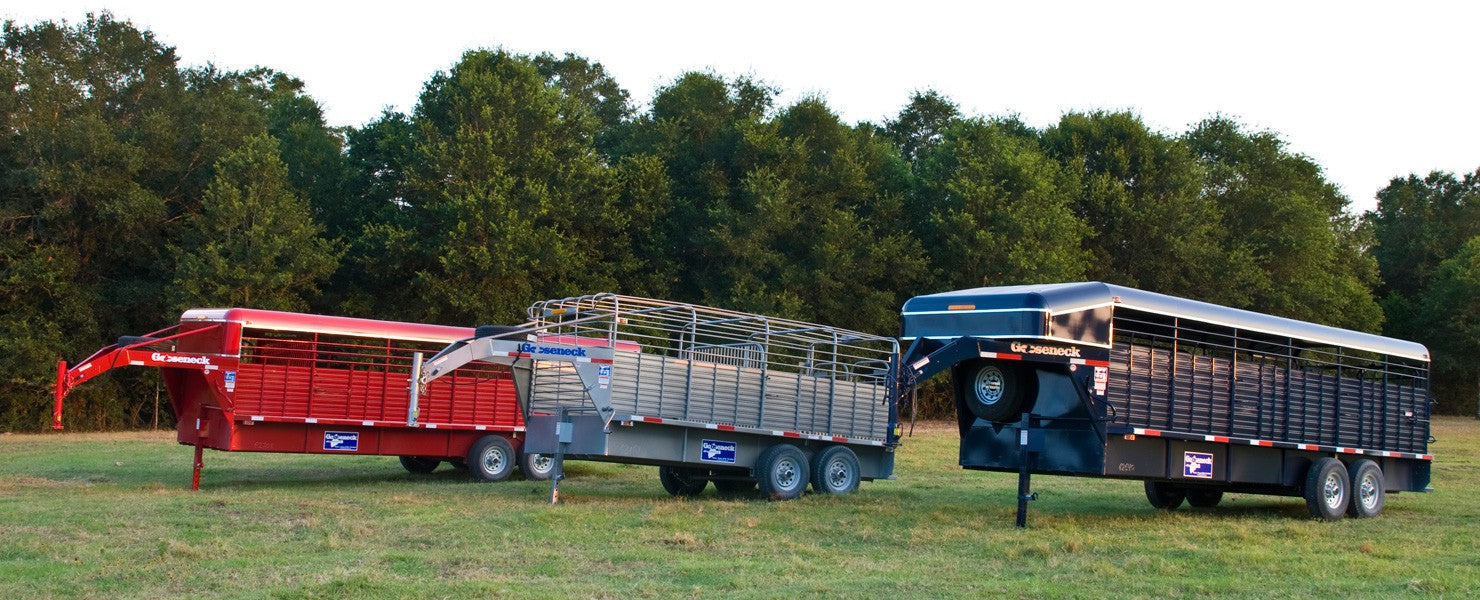

Steel Stock Trailer Features
Steel Stock Trailer Features
Steel Stock Trailer Features

Steel Stock Trailer Features

Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Availability
Sold out

Standard Features

  • 16′, 20′, 24′, 28′, 32′, 36′, and 40′ Lengths
  • 5′, 6′, 6’6″, 6’8″, 7′, and 7’6″ Widths
  • 6’6″ Bow Height Bartop
  • 3-Plank Spaced Sides
  • 3/16′ or 7-Gauge Steel Body and Brush Fender
  • Schedule 40 1¼” Bow Pipes on 4′ Centers
  • 4″ Channel Cross Members on 4′ Centers
  • 2″ x 2″ x 3/16″ Angle Iron Floor Runners Full-Length of Trailer
  • Double T-Braces
  • 3/16″ Formed Neck Gusset
  • 8″ Channel Iron Neck Up to 28′ and 10″ Channel Iron Neck on 32′ and Up
  • Adjustable 2–5/16″ (25K) Ball Coupler (Hitch)
  • Schedule 40 Heavy-Duty Vertical Pipe Gates With 1-Piece Outer Bow Frame
  • Sandblasted, Primed With Rust Inhibitive Primer, and Painted With 2 Coats of Paint
  • 2″ x 6″ and/or 2″ x 8″ Treated Pine Floor
  • Split Tailgate
  • 1 Crossgate (16′ and 20′ Lengths)
  • 2 Crossgates (24′, 28′ and 32′ Lengths)
  • 3 Crossgates (36′ and 40′ Lengths)
  • 1 Spring-Loaded Drop Leg Jack
  • Electric Brakes (All Axles)
  • Cambered Spring Axles
  • 6K, 7K, 7.2K, 8K, and 10K Axles Available
  • 8-Hole 16″ Wheels
  • 235 85 R16 Radial Tires
  • Center Caps
  • Spare Tire and Rack
  • Safety Chains
  • Lights Meet U.S. DOT-Required Specifications
  • Conspicuity (Reflective) Tape
  • 4″ x 2″ Rectangle Tube Bumper
  • 3-Light LED Bars on Front and Rear
  • 5-Year Limited Warranty
